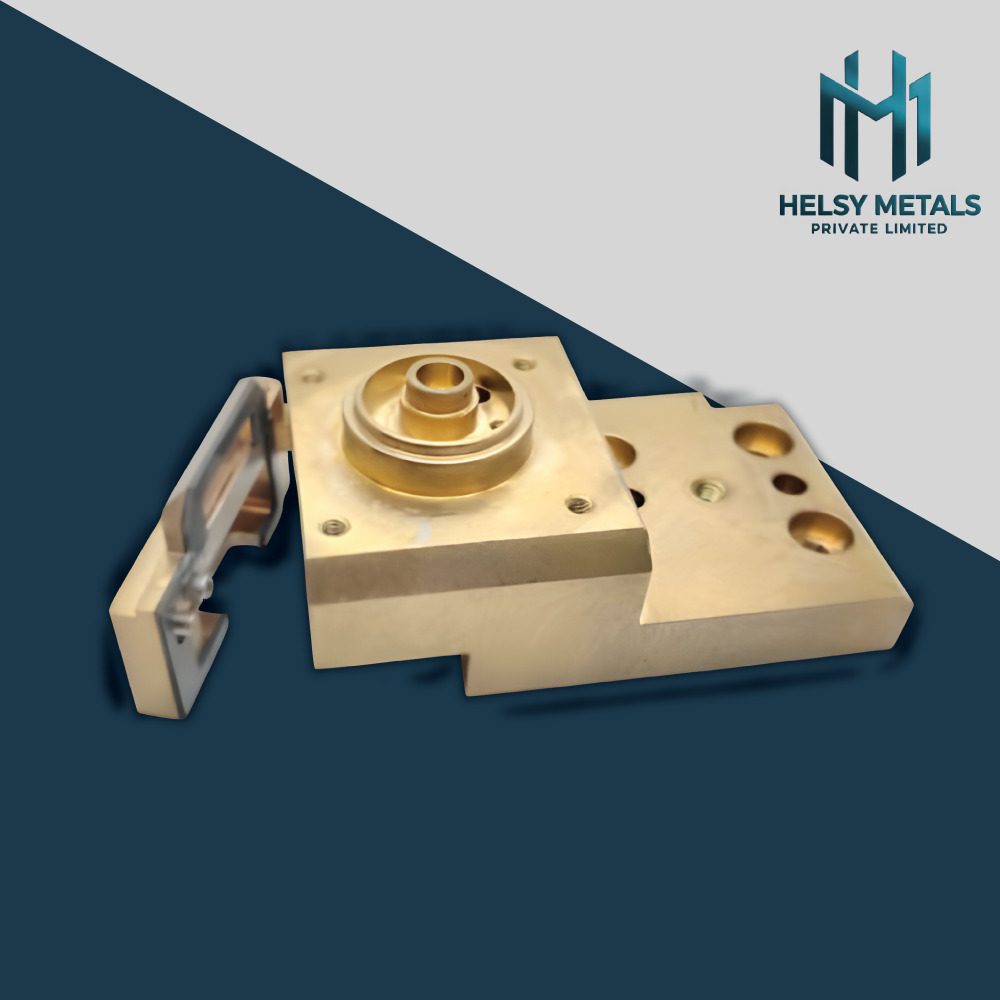

H-V829 High-Precision CNC Machined Brass Valve Block Fluid Control Housing

Send Inquiry

Request To Call Back

H-V829 High-Precision CNC Machined Brass Valve Block Fluid Control Housing

Name: H-V829 High-Precision CNC Machined Brass Valve Block Fluid Control Housing
Brand: HELSY METALS PRIVATE LIMITED
Price: 80 INR
Availability: InStock

Price 80 INR/ Piece

Get a Price/Quote

MOQ : 500 Pieces

H-V829 High-Precision CNC Machined Brass Valve Block Fluid Control Housing Specification

Thread Type
Metric and BSPT Internal Threading

Method
Subtractive CNC Milling

Load Capacity
Up to 20 bar fluid pressure

Coating
No External Coating (Natural Brass Finish)

Spindle Speed
40008500 RPM

Machine Type
5-Axis CNC Machining Center

Cutting Speed
120200 m/min

Weight
Approx. 1.1 kg

Hardness
80100 HB

Shape
Rectangular Block with Multiple Passages

Size
120 mm x 65 mm x 38 mm

Accuracy
0.008 mm

Type
Valve Block Housing

Material
Brass (CuZn39Pb3)

Tolerance
0.01 mm

Surface
Smooth, Polished Finish

Use
Valve Block for Fluid Control Systems

Application
Fluid Management, Industrial Automation

Usage & Applications
Manifolds, Hydraulic Control, Pneumatic Systems

Leakage Test
Pressure tested at 1.5x rated load

Port Configuration
6 x G1/4", 2 x M10 Threaded Inlets

Customization
Custom channel layouts available

Packaging
Vacuum-sealed anti-corrosion wrap

Corrosion Resistance
High, suitable for water, oil, air

Internal Channel Diameter
8 mm

Operating Temperature Range
-20C to +120C

Edge Finish
Deburred, chamfered for installation safety

Assembly
Designed for easy integration with standard valves

H-V829 High-Precision CNC Machined Brass Valve Block Fluid Control Housing Trade Information

Minimum Order Quantity
500 Pieces

Supply Ability
50000 Pieces Per Month

Delivery Time
7-10 Days

H-V829 High-Precision CNC Machined Brass Valve Block Fluid Control Housing About

Setting a transcendent standard, the H-V829 High-Precision CNC Machined Brass Valve Block fluid control housing embodies elite design and manufacturing excellence. Favorable reviews from buyers highlight its deburred, chamfered edges, high corrosion resistance, and smooth, polished finish. Purchase this paragon of industrial automation for robust fluid management across water, oil, and air applications. Pressure tested at 1.5x rated load, and manufactured using 5-axis CNC machining for 0.01 mm tolerance, it ensures consistent integration and operational safety. Customization options, vacuum-sealed packaging, and easy installation reflect its elite position in its class.

Superior Machining and Versatile Applications

Manufactured using advanced 5-axis CNC technology at cutting speeds of 120-200 m/min, the H-V829 Valve Block features an 8 mm internal channel diameter in a rectangular brass format. With elite corrosion resistance and 0.008 mm accuracy, this product is a paragon for fluid control in manifolds, hydraulic, and pneumatic systems. Its smooth, polished, deburred surface supports industrial automation and fluid management, making integration safe, precise, and efficient.

Export Markets and Delivery Excellence

The H-V829 Brass Valve Block is supplied to global markets including Europe, North America, Southeast Asia, and the Middle East. Shipped goods are vacuum-sealed and wrapped for anti-corrosion protection, ensuring safe arrival. Standard delivery times average 2-4 weeks, with sample units available for initial evaluation. Renowned for timely supply and reliable shipping, this component reaches manufacturers worldwide with a commitment to precision and expedient service.

FAQ's of H-V829 High-Precision CNC Machined Brass Valve Block Fluid Control Housing:

Q: How is the H-V829 Valve Block manufactured for high precision?

A: The H-V829 Valve Block is crafted on a 5-axis CNC Machining Center using subtractive milling, targeting tolerances as fine as 0.008 mm for uniformity and precision.

Q: What areas of industry commonly use the H-V829 Brass Valve Block?

A: It is widely applied in fluid management systems for industrial automation, including manifolds, hydraulic control units, and pneumatic systems for water, oil, or air.

Q: When can customers expect delivery after placing an order?

A: Standard delivery for shipped goods usually takes 2-4 weeks, depending on destination and order quantity. Expedited and sample orders are also available for faster arrival.

Q: Where is the H-V829 Valve Block most frequently exported?

A: This valve block is supplied to main export markets such as Europe, North America, Southeast Asia, and the Middle East, supporting global industrial demands.

Q: What process ensures the valve block's enhanced corrosion resistance and safety?

A: The valve block undergoes deburring and chamfering for installation safety, is pressure tested at 1.5x rated load, and vacuum-sealed in anti-corrosion wrap for optimal durability.

Q: How can clients benefit from custom channel layouts offered for this product?

A: Clients can request custom channel layouts to suit their specific installation or system requirements, enhancing operational efficiency and integration flexibility.
